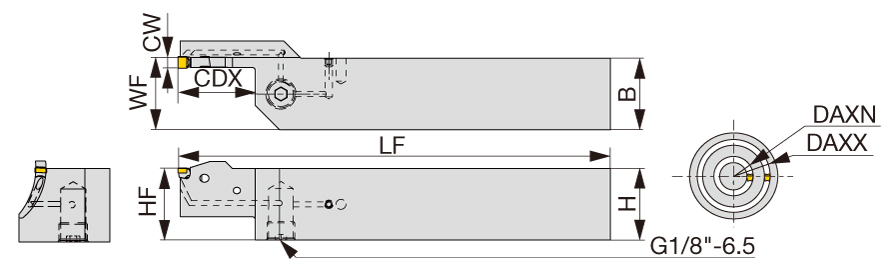

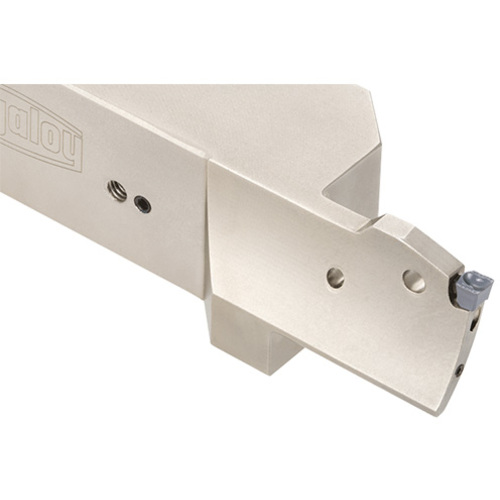

ETFR2525-4T25-075120-CHP
| Shank Width (B) | 25 mm | Application | | Face grooving | |
| Shank Height (H) | 25 mm | Minimum Bore Diameter (DMIN) | 75 mm |
| Cutting Width (CW) | 4 mm | Tool Type | TOOLHOLDERS - FOR FACE GROOVING |
| Cutting Direction (HAND) | Right Hand | Body Material | Steel |
| Overall Length (OAL) | 150 mm | Functional Width (WF) | 25.5 mm |
| Work Piece Parting Diameter Maximum (CUTDIA) | 120 mm | Measurement Type | Metric |
Product Features
| Family Description | Toolholder for face grooving & turning, with channels for high pressure coolant. | Country of Origin | Japan |
| Remarks | Wrench (ECW**) for clamping insert should be ordered separately. For wrench (ECW**), click on "More Info". |
