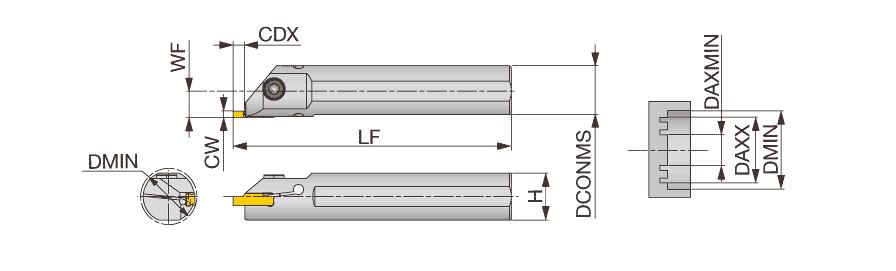

CTIFR32-4T05-D340
| Shank Height (H) | 30 mm | Head Length (LH) | 42 mm |
| Cutting Width (CW) | 4 mm | Minimum Bore Diameter (DMIN) | 33.8 mm |
| Cutting Direction (HAND) | Right Hand | Tool Type | Face Turning & grooving Tools |
| Overall Length (OAL) | 250 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Functional Width (WF) | 16.8 mm |
| Application | | Face grooving | | Measurement Type | Metric |
Product Features
| Family Description | Toolholders for face / internal face grooving & turning | Country of Origin | JAPAN |
| Remarks | See applicable inserts table. Use the right hand insert for the right hand holder with DTF insert. Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
3.084
