DSXU3906F03 AH180

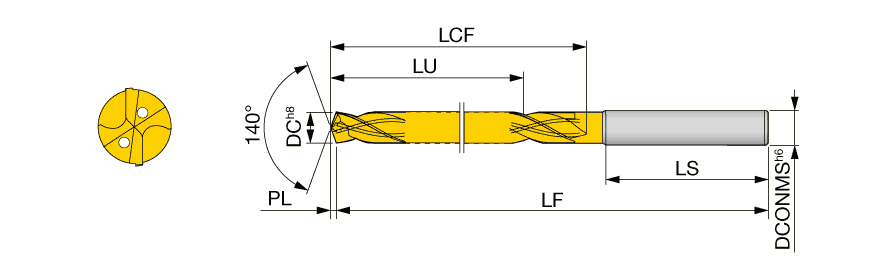

SC Drill; 0.3906″ Dia. × 0.391″ Shank Dia. × 4.17″ OAL × 1.97″ LCF ; 140 Degrees ; TiAlN
| Drill Bit Size / Cutting Diameter (DC) | 0.3906″ | Shank Length (LS) | 2.2″ |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.3906″ | Shank Type | Round |
| Decimal Equivalent | 0.3906″ | Cutting Edge Material | Carbide |
| Coating | TiAlN | Tool Type | solid carbide Drills |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | AH180 |
| Application | | General Drilling | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.391″ | Usable Length (LU) | 1.243″ |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 1.97″ |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 4.17″ |
| Point Length (PL) | 0.071″ | Body Material | Carbide |
Product Features
| Family Description | GigaJetDrill series with coolant hole, L/D=3 | Country of Origin | Thailand |
Shipping Info
Package Weight
0.223
