DSM-CP140 YH170

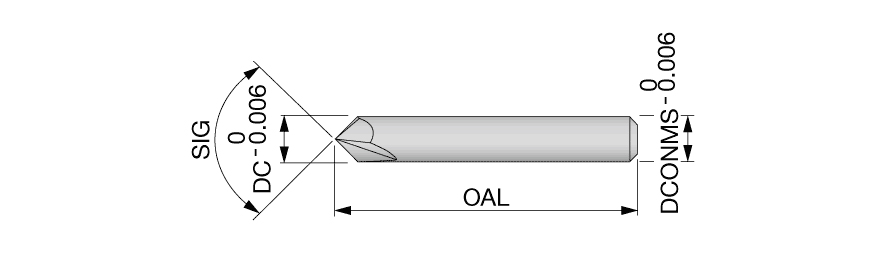

SC Drill; 3 mm Dia. × 3 mm Shank Dia. × 38.1 mm OAL × 4.8 mm LCF ; 140 Degrees ; TiCN
| Drill Bit Size / Cutting Diameter (DC) | 3 mm | Point Length (PL) | 0.55 mm |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.1181″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3 mm | Cutting Edge Material | Carbide |
| Coating | TiCN | Tool Type | solid carbide Drills |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | YH170 |
| Application | | General Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Length Chip Flute (LCF) | 4.8 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 38.1 mm |
| Point Angle (SIG) | 140 Degrees | Body Material | Carbide |
Product Features
| Family Description | Drills for center hole | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.015
