DSM0026G10 YH170

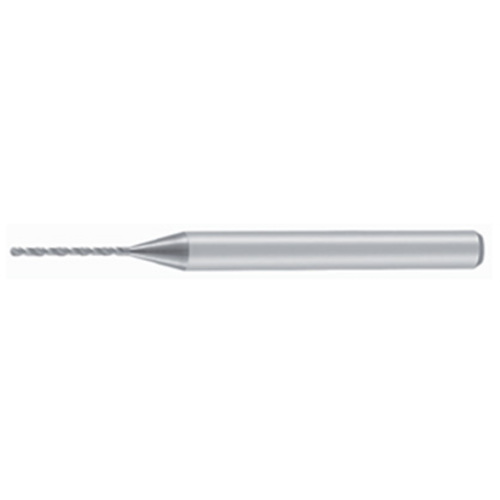

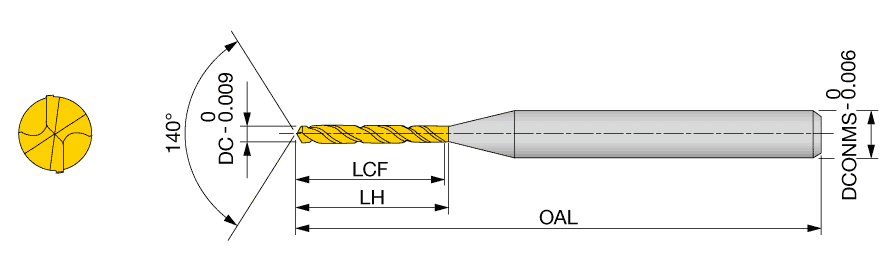

SC Drill; 0.26 mm Dia. × 3 mm Shank Dia. × 38 mm OAL × 3.1 mm LCF ; 140 Degrees ; TiCN
| Drill Bit Size / Cutting Diameter (DC) | 0.26 mm | Shank Length (LS) | 29.5 mm |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.0102″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 0.26 mm | Cutting Edge Material | Carbide |
| Coating | TiCN | Tool Type | solid carbide Drills |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | YH170 |
| Application | | General Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Usable Length (LU) | 2.6 mm |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 3.1 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 38 mm |
| Point Length (PL) | 0.05 mm | Body Material | Carbide |
Product Features
| Family Description | Small dia. solid carbide drill, L/D (ULDR) =5 - 15 | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.018
