47D-6215S6RQ091 IN2005

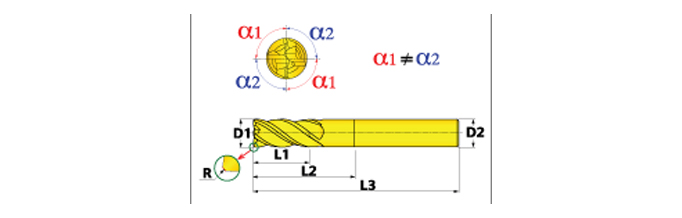

SQ End Mill; 5/8″ Dia. × 1.56″ LOC × 5/8″ Shank Dia. × 4″ OAL ; 0.09″ RE ; 5 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 5/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Depth of Cut Maximum (APMX) | 1.56″ | Corner Radius (RE) | 0.09″ |
| Overall Length (OAL) | 4″ | Grade | IN2005 |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | TiAlN | Body Material | Carbide |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.625″ |
| Flute Helix Angle (FHA) | 38 Degrees | Measurement Type | Inch |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.090 R |
Product Features
| Family Description | Variable pitch with corner radius and sharp corners High metal removal rates, chatter-free For alloyed and stainless steel, titanium, and exotic materials Full slot milling up to 2xD Grade: IN2005 | Country of Origin | Israel |
Shipping Info
Package Weight
0.549
