47D-379477RQ02 IN2005

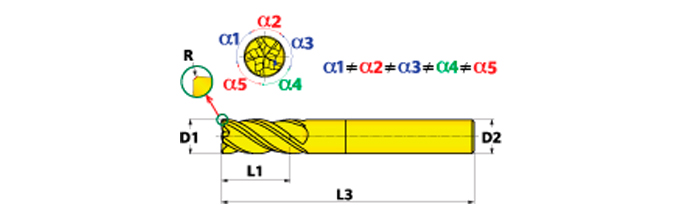

SQ End Mill; 3/8″ Dia. × 0.94″ LOC × 3/8″ Shank Dia. × 3″ OAL ; 0.02″ RE ; 5 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 3/8″ | Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Corner Radius (RE) | 0.02″ |
| Depth of Cut Maximum (APMX) | 0.94″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 3″ | Grade | IN2005 |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | TiAlN | Body Material | Carbide |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.375″ |
| Flute Helix Angle (FHA) | 36-38 Degrees | Measurement Type | Inch |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.020 R |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Excellent chatter dampening Suitable for all types of steel and high temperature alloys Used for very high material removal rates in roughing and finishing operations | Country of Origin | Israel |
Shipping Info
Package Weight
0.163
