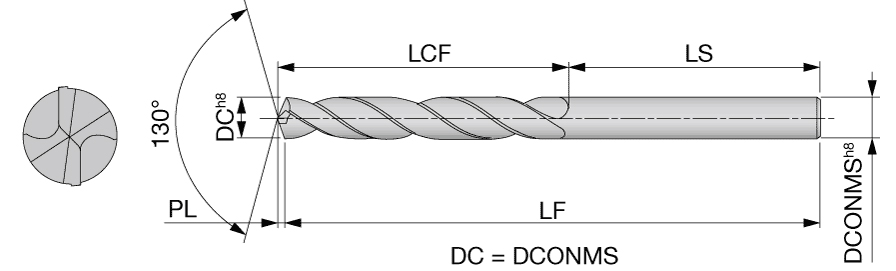

DMX0300FL MD20
SC Drill; 3 mm Dia. × 3 mm Shank Dia. × 66.7 mm OAL ; 130 Degrees
| Drill Bit Size / Cutting Diameter (DC) | 3 mm | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3 mm | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | | Tool Type | solid carbide Drills |
| Application | | General Drilling | | Grade | MD20 |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | External | Usable Length (LU) | 15.7 mm |
| Point Angle (SIG) | 130 Degrees | Overall Length (OAL) | 66.7 mm |
| Point Length (PL) | 0.7 mm | Body Material | Carbide |
| Shank Length (LS) | 39 mm |
Product Features
| Family Description | Solid drill for cast iron and aluminum alloy, with 130 deg point angle, L/D = 5 | Country of Origin | Japan |
| Remarks | DC = 3.00 / DC tolerance h8: 0 / 0.014 DC = 4.00, 5.00 / DC tolerance h8: 0 / 0.018 DC = 8.50 / DC tolerance h8: 0 / 0.022 |
Shipping Info
Package Weight
0.009
