DSQ160-048-16E3 AH9130
SC Drill; 16 mm Dia. × 16 mm Shank Dia. × 150 mm OAL ; 120 Degrees ; TiAlSiCrN

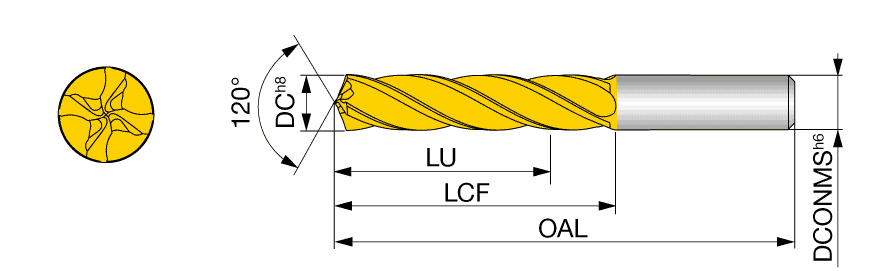

| Drill Bit Size / Cutting Diameter (DC) | 16 mm | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 16 mm | Cutting Edge Material | Carbide |
| Coating | TiAlSiCrN | Tool Type | solid carbide Drills |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | AH9130 |
| Application | | General Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Usable Length (LU) | 64 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 150 mm |
| Point Angle (SIG) | 120 Degrees | Body Material | Carbide |
| Point Length (PL) | 3.4 mm |
Product Features
| Family Description | Solid4FlutesDrill Solid drill without coolant hole, 4 flutes, DIN shank, L/D = 3 | Country of Origin | Japan |
