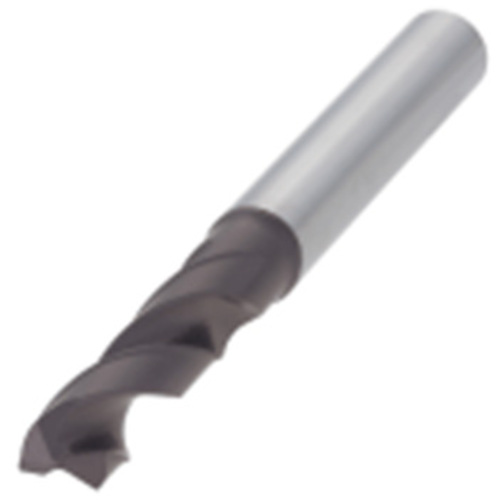

DSW098-049-10DE5 AH725

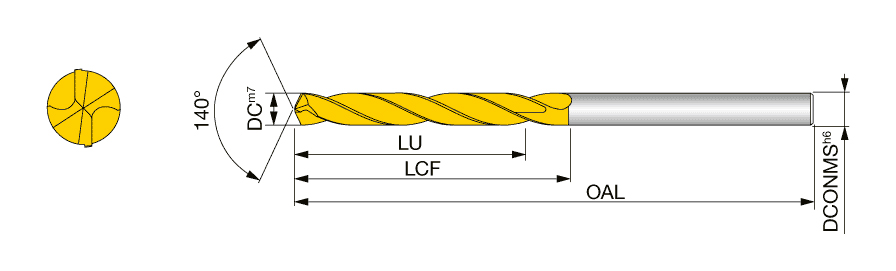

SC Drill; 9.8 mm Dia. × 10 mm Shank Dia. × 103 mm OAL × 61 mm LCF ; 140 Degrees ; TiAlN
| Drill Bit Size / Cutting Diameter (DC) | 9.8 mm | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 9.8 mm | Cutting Edge Material | Carbide |
| Coating | TiAlN | Tool Type | solid carbide Drills |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | AH725 |
| Application | | General Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Usable Length (LU) | 49 mm |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 61 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 103 mm |
| Point Length (PL) | 1.78 mm | Body Material | Carbide |
| Shank Length (LS) | 40 mm |
Product Features
| Family Description | Solid carbide drill without coolant hole, L/D=5 | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.198
