48J-3708R8RD25 IN2006

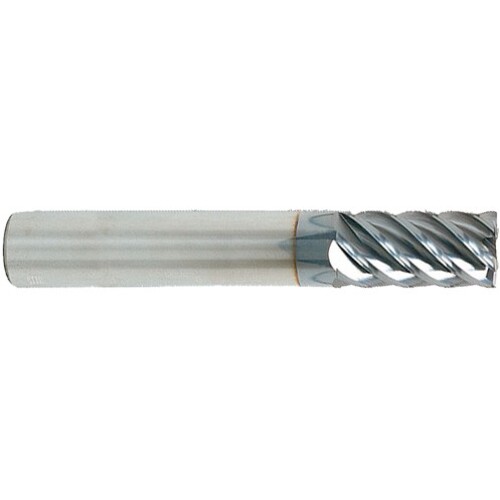

SQ End Mill; 3/8″ Dia. × 0.87″ LOC × 3/8″ Shank Dia. × 3″ OAL ; 6 FL ; TiAlN
| Cutting Diameter (DC) | 3/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Application | Countersinking | Helical Interpolation | Rampdown | Shouldering | Slotting |
| Depth of Cut Maximum (APMX) | 0.87″ | Grade | IN2006 |
| Overall Length (OAL) | 3″ | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Body Material | Steel |
| Coating | TiAlN | Decimal Equivalent | 0.375″ |
| Flute Count (NOF) | 6 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 45 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | Sharp |
| End Shape | Square |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.2
