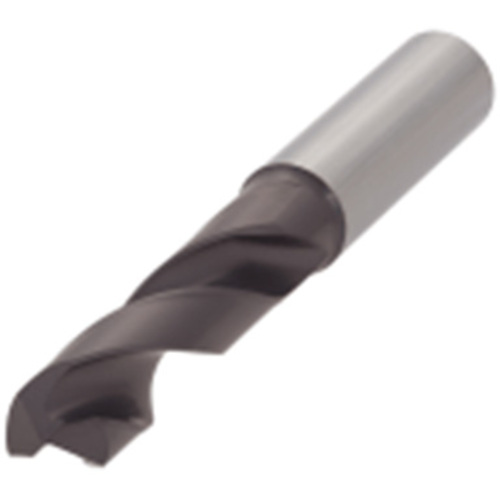

DSW109-040-12DE3 AH725
SC Drill; 10.9 mm Dia. × 12 mm Shank Dia. × 102 mm OAL × 55 mm LCF ; 140 Degrees ; TiAlN
| Drill Bit Size / Cutting Diameter (DC) | 10.9 mm | Shank Length (LS) | 45 mm |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.4291″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 10.9 mm | Cutting Edge Material | Carbide |
| Coating | TiAlN | Tool Type | solid carbide Drills |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | AH725 |
| Application | | General Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Usable Length (LU) | 40 mm |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 55 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 102 mm |
| Point Length (PL) | 1.98 mm | Body Material | Carbide |
Product Features
| Family Description | Solid carbide drill without coolant hole, L/D=3 | Country of Origin | S.Korea |
