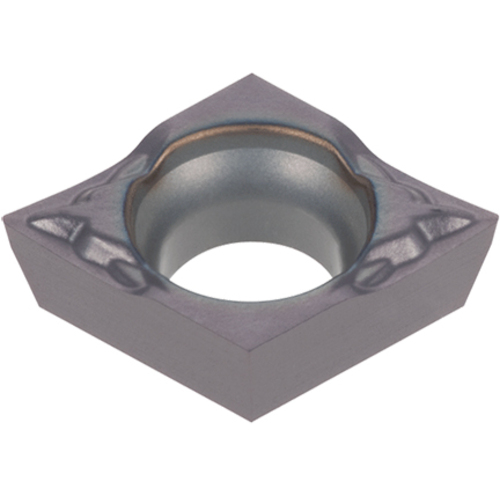

EPGT4.51.81 F-JS SH7025
| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 0.0023″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0197″ |
| Corner Radius (RE) | 0.0157″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 0.146″ | Max. Turning Feed (ft(max)) | 0.0059 ″/rev |
| Insert Thickness (S) | 0.055″ | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 0.141″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | JS |
| Coating | TiAlN+TiCN | Measurement Type | Inch |
| Grade | SH7025 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.075″ | Cutting Edge Effective Length (LE) | 0.111″ |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Positive 11 deg relief angle, G class, 75 deg rhombic insert, 3 dimensional type chipbreaker for cutting on small lathes | Country of Origin | Japan |
| Remarks | "F" included in designation means sharp edge. |
