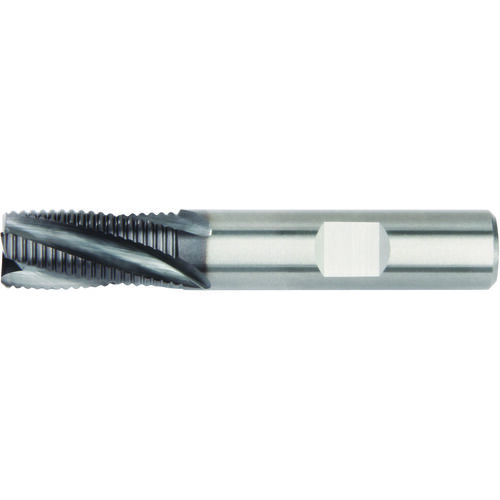

1/4X1/4X3/8X2 SC RUF 3FL
SQ End Mill; 1/4″ Dia. × 3/8″ LOC × 1/4″ Shank Dia. × 2″ OAL ; 0.0118″ RE ; 3 FL ; 3/8″ LBS ; Carbide ; AlTiN
Additional Tariff Surcharge of 8.5 %
| Cutting Diameter (DC) | 1/4″ | Usable Length (LU) | 3/8″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 3/8″ | Corner Chamfer Width (CHW) | 0.012″ |
| Overall Length (OAL) | 2″ | Grade | TIALN-RT |
| Cutting Edge Material | Carbide | Flute Type | Fine |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Style | 82-02 SEM Side and Center |
| Flute Helix Angle (FHA) | CW|20 Degrees | Decimal Equivalent | 0.25″ |
| Shank Type | Weldon | Corner Radius (RE) / Chamfer Width (CHW) | 0.0118″ |
| End Shape | Chamfer |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.053
