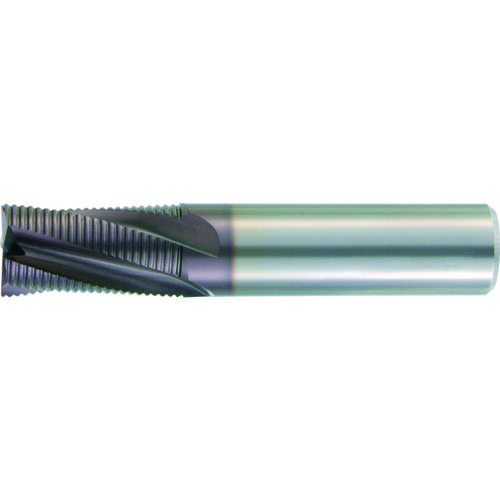

SC RUF 4FL 5/8X5/8X1.1/4X3.1/2
| Cutting Diameter (DC) | 5/8″ | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Usable Length (LU) | 1-1/4″ |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Corner Chamfer Width (CHW) | 0.02″ |
| Overall Length (OAL) | 3-1/2″ | Grade | TIALN-RW |
| Cutting Edge Material | Carbide | Flute Type | Fine |
| Coating | TiAlN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Style | 82-02 SEM Side and Center |
| Flute Helix Angle (FHA) | CW|20 Degrees | Decimal Equivalent | 0.625″ |
| Shank Type | Weldon |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.4806
