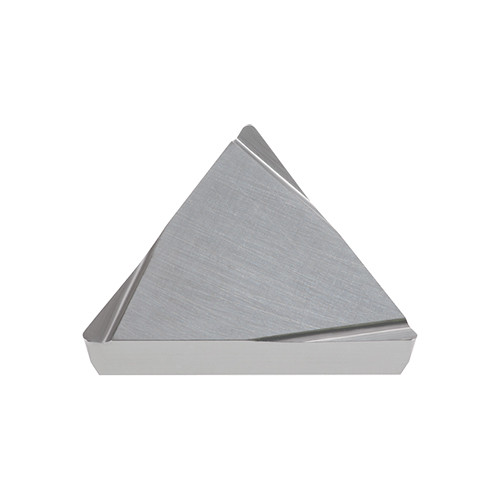

TPGR110304L NS9530
Turning Insert; TPGR 221 L NS9530 ; 11 mm Length ; 6.35 mm IC ; 0.4 mm Corner Radius ; Cermet ; Left Hand
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Min D.O.C. | 0.2 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 2 mm |

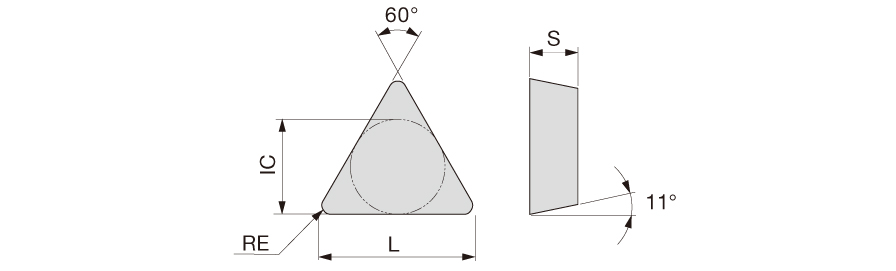

| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Cutting Edge Length (L) | 11 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Insert Thickness (S) | 3.18 mm | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 6.35 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Edge Material | Cermet | Chip Breaker Type | LB |
| Grade | NS9530 | Measurement Type | Metric |
| Tool Type | Turn Positive Inserts | Body Material | Carbide |
Product Features
| Family Description | Positive 11deg relief ang., G class, triangular insert, leadtype chipbreaker for finishing to medium cutting | Country of Origin | Japan |
Shipping Info
Package Weight
0.005
