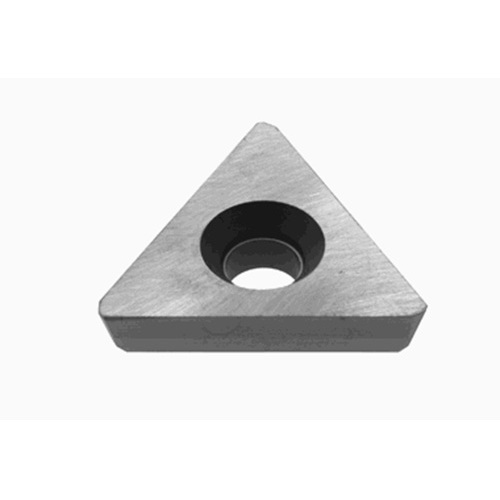

TPGA 321 NS9530
Turning Insert; TPGA 321 NS9530 ; 0.65″ Length ; 3/8″ IC ; 0.016″ Corner Radius ; Cermet ; Neutral
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Min D.O.C. | 0.0039″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0787″ |
| Corner Radius (RE) | 0.0157″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 0.65″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Thickness (S) | 1/8″ | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Cermet | Chip Breaker Type | FT |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | NS9530 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.157″ | Cutting Edge Effective Length (LE) | 0.595″ |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Positive 11deg relief ang., G class, triangular insert, without chipbreaker for finishing to medium cutting (special hole) | Country of Origin | Japan |
Shipping Info
Package Weight
0.007
