46D01015T1RQ20 IN05S

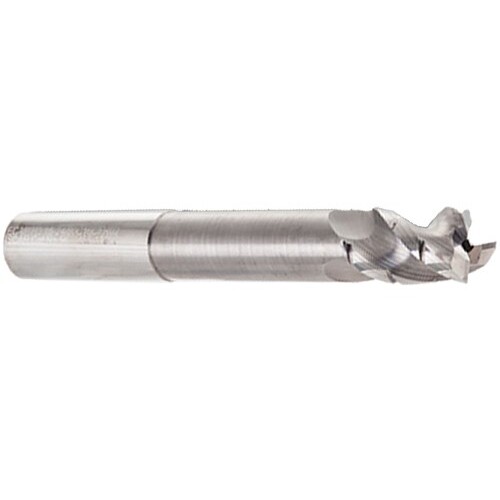

SQ End Mill; 0.394″ Dia. × 0.591″ LOC × 0.394″ Shank Dia. × 3.622″ OAL ; 3 FL
| Cutting Diameter (DC) | 0.394″ | Usable Length (LU) | 0.945″ |
| Connection Diameter Machine Side (DCONMS) | 0.394″ | Applicable Material | | Cast Iron | Non Ferrous Metals | |
| Depth of Cut Maximum (APMX) | 0.591″ | Application | Helical Interpolation | Rampdown | Shouldering | Slotting |
| Overall Length (OAL) | 3.622″ | Grade | IN05S |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | AlTiN | Body Material | Steel |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.394″ |
| Flute Helix Angle (FHA) | 39-41 Degrees | Measurement Type | Inch |
| End Shape | Square |
Product Features
| Family Description | Chip Splitters | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.25
