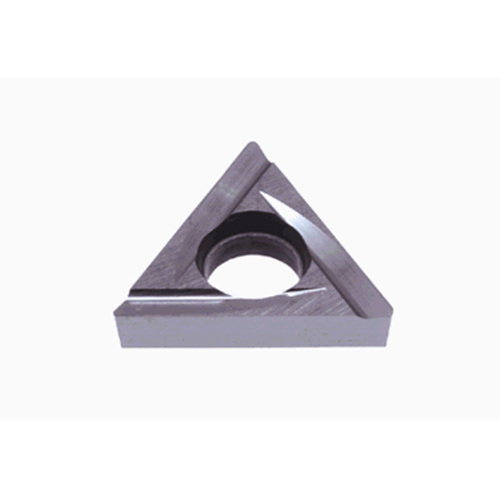

TCGT 620.5 R NS9530
Turning Insert; TCGT 620.5 R NS9530 ; 0.323″ Length ; 0.187″ IC ; 0.008″ Corner Radius ; Cermet ; Right Hand
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Min D.O.C. | 0.0078″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0787″ |
| Corner Radius (RE) | 0.008″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Cutting Edge Length (L) | 0.323″ | Max. Turning Feed (ft(max)) | 0.0078 ″/rev |
| Insert Thickness (S) | 0.063″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 0.187″ | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Cermet | Chip Breaker Type | PB |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | NS9530 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.106″ | Cutting Edge Effective Length (LE) | 0.297″ |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Positive 7deg relief ang., G class, triangular insert, lead type chipbreaker for finishing to medium cutting | Country of Origin | Japan |
Shipping Info
Package Weight
0.003
