SPGM 321 L NS9530

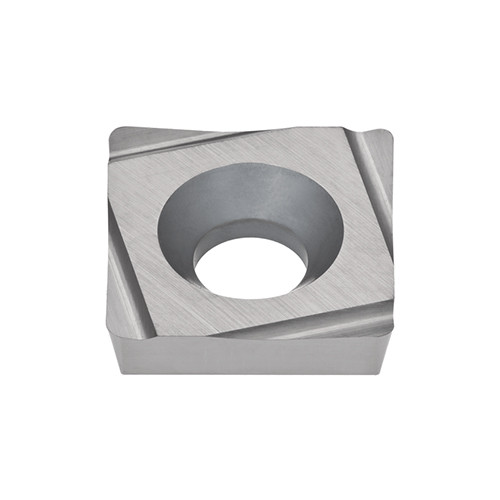

Turning Insert; SPGM 321 L NS9530 ; 3/8″ Length ; 3/8″ IC ; 0.016″ Corner Radius ; Cermet ; Left Hand
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Tool Type | Turn Positive Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0078″ |
| Corner Radius (RE) | 0.016″ | Depth of Cut Maximum (APMX) | 0.0787″ |
| Cutting Edge Length (L) | 3/8″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Insert Thickness (S) | 1/8″ | Max. Turning Feed (ft(max)) | 0.0078 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ | Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Material | Cermet | Cutting Direction (HAND) | Left Hand |
| Coating | Uncoated | Chip Breaker Type | LB |
| Grade | NS9530 | Measurement Type | Inch |
| Fixing Hole Diameter (D1) | 0.157″ | Body Material | Carbide |
Product Features
| Family Description | Positive 11deg relief ang., G class, square insert, lead type chipbreaker for finishing to medium cutting | Country of Origin | Japan |
Shipping Info
Package Weight
0.006
