CPGT 2.51.51 L-W15 NS9530

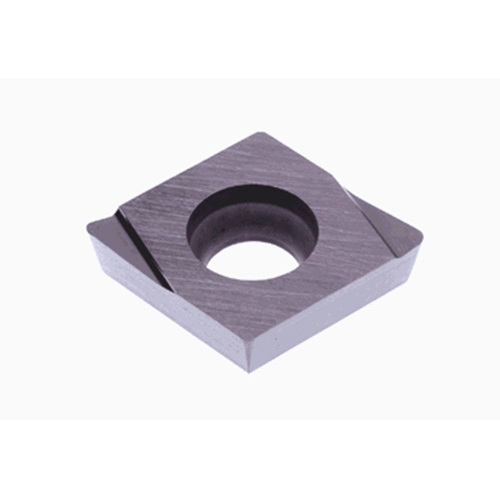

Turning Insert; CPGT 2.51.51F L-W15 NS9530 ; 0.319″ Length ; 0.313″ IC ; 0.016″ Corner Radius ; Cermet ; Left Hand
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Min D.O.C. | 0.0079″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0787″ |
| Corner Radius (RE) | 0.016″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Cutting Edge Length (L) | 0.319″ | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Insert Thickness (S) | 0.094″ | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 0.313″ | Cutting Direction (HAND) | Left Hand |
| Cutting Edge Material | Cermet | Chip Breaker Type | W15 |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | NS9530 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.134″ | Cutting Edge Effective Length (LE) | 0.285″ |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Positive 11deg relief ang., G class, 80deg rhombic insert, lead type chipbreaker for finishing | Country of Origin | Japan |
Shipping Info
Package Weight
0.004
