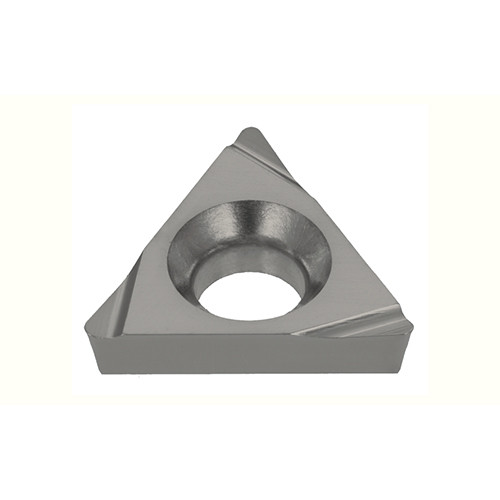

TPGH 221 L-W13 GT9530
Turning Insert; TPGH 221 L-W13 GT9530 ; 0.433″ Length ; 1/4″ IC ; 0.016″ Corner Radius ; Cermet ; Left Hand ; TiCNO
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Tool Type | Turn Positive Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0079″ |
| Corner Radius (RE) | 0.016″ | Depth of Cut Maximum (APMX) | 0.0787″ |
| Cutting Edge Length (L) | 0.433″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Insert Thickness (S) | 1/8″ | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Inscribed Circle Diameter (IC) | 1/4″ | Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Material | Cermet | Cutting Direction (HAND) | Left Hand |
| Coating | TiCNO | Chip Breaker Type | W13 |
| Grade | GT9530 | Measurement Type | Inch |
| Fixing Hole Diameter (D1) | 0.134″ | Body Material | Carbide |
Product Features
| Family Description | Positive 11deg relief ang., G class, triangular insert, leadtype chipbreaker for finishing | Country of Origin | Japan |
Shipping Info
Package Weight
0.004
