TNGG 330.5 L-P NS9530

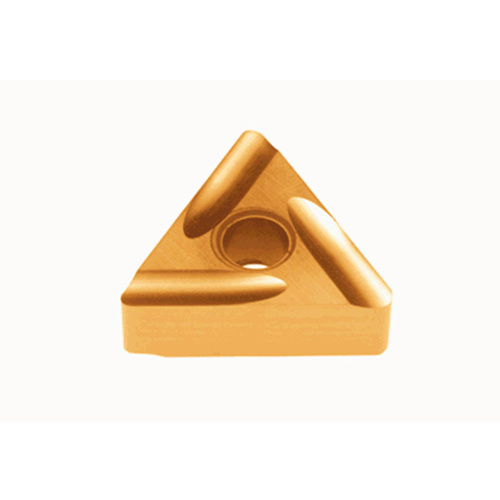

Turning Insert; TNGG 330.5 L-P NS9530 ; 0.65″ Length ; 3/8″ IC ; 0.008″ Corner Radius ; Cermet ; Left Hand
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | NS9530 |
| Application | | Inserts | | Fixing Hole Diameter (D1) | 0.15″ |
| Corner Radius (RE) | 0.008″ | Tool Type | Turn Inserts AL, HTA Geometric |
| Cutting Edge Length (L) | 0.65″ | Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | P |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Edge Material | Cermet | Body Material | Carbide |
| Coating | Uncoated | Cutting Edge Effective Length (LE) | 0.622″ |
Product Features
| Family Description | Negative relief ang., G class, triangular insert, for medium cutting | Country of Origin | Japan |
| Remarks | "F" included in designation means sharp edge. |
