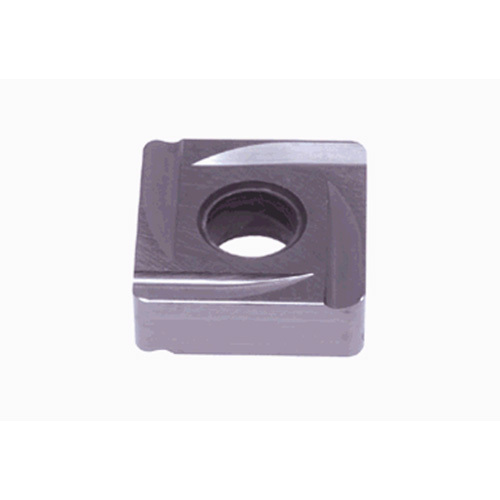

SNGG 322 R-B NS9530
Turning Insert; SNGG 322 R-B NS9530 ; 3/8″ Length ; 3/8″ IC ; 0.031″ Corner Radius ; Cermet ; Right Hand
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.002″ |
| Corner Radius (RE) | 0.031″ | Depth of Cut Maximum (APMX) | 0.0787″ |
| Cutting Edge Length (L) | 3/8″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Insert Thickness (S) | 1/8″ | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Cermet | Chip Breaker Type | B |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | NS9530 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.15″ | Cutting Edge Effective Length (LE) | 0.344″ |
Product Features
| Family Description | Negative relief ang., G class, square insert, for precision finishing | Country of Origin | Japan |
Shipping Info
Package Weight
0.006
