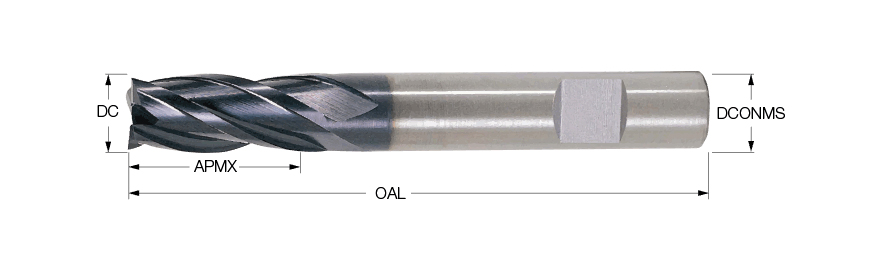

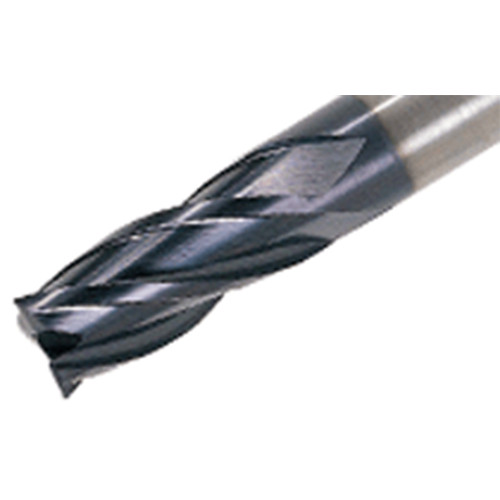

EH-A4 10-22W10-72 HS MPC
SQ End Mill; 10 mm Dia. × 22 mm LOC × 10 mm Shank Dia. × 72 mm OAL ; 0 mm RE ; 4 FL ; 22 mm LBS ; HSS ; TiN
| Cutting Diameter (DC) | 10 mm | Application | | Counter Boring | Helical Interpolation | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Corner Radius (RE) | 0 mm |
| Depth of Cut Maximum (APMX) | 22 mm | Grade | MPC |
| Overall Length (OAL) | 72 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | HSS | Coolant Supply Property (CSP) | External |
| Coating | TiN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees | Connection Code Machine Side (CCMS) | Weldon |
| Shank Type | Weldon | Cutting Diameter Tolerance | e8 |
| End Shape | Corner Radius | Shank Diameter Tolerance (TCDMM) | h6 |
| Usable Length (LU) | 22 mm |
Product Features
| Family Description | 4 flute, 30° helix, medium length HSS endmills. | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.093
