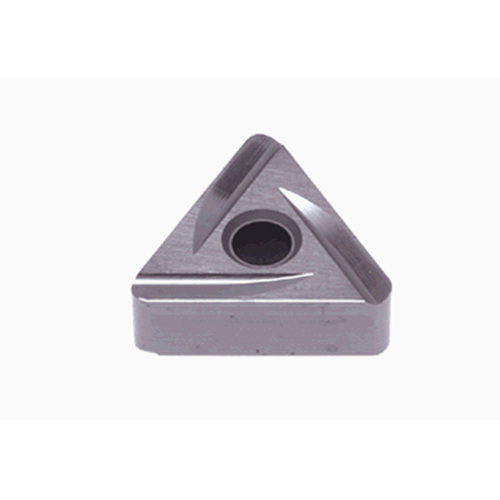

TNGG 221 L-A GT9530
Turning Insert; TNGG 221 L-A GT9530 ; 0.433″ Length ; 1/4″ IC ; 0.016″ Corner Radius ; Cermet ; Left Hand ; TiCNO
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.002″ |
| Corner Radius (RE) | 0.016″ | Depth of Cut Maximum (APMX) | 0.0787″ |
| Cutting Edge Length (L) | 0.433″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Insert Thickness (S) | 1/8″ | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Inscribed Circle Diameter (IC) | 1/4″ | Cutting Direction (HAND) | Left Hand |
| Cutting Edge Material | Cermet | Chip Breaker Type | A |
| Coating | TiCNO | Measurement Type | Inch |
| Grade | GT9530 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.089″ | Cutting Edge Effective Length (LE) | 0.378″ |
Product Features
| Family Description | Negative relief ang., G class, triangular insert, for precision finishing | Country of Origin | Japan |
Shipping Info
Package Weight
0.005
