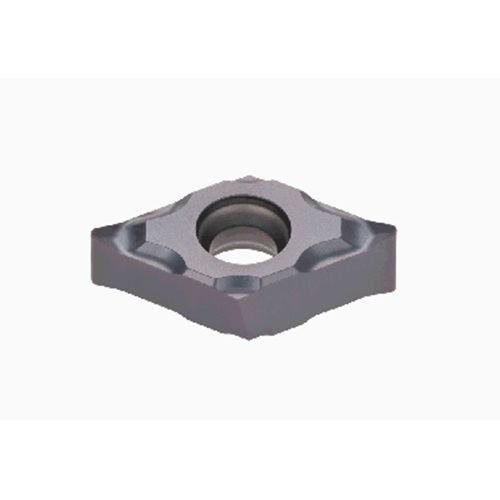

DXGU 221R SS AH725
Turning Insert; DXGU221R-SS AH725 ; 1/4″ IC ; 0.016″ Corner Radius ; Carbide ; Right Hand ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.0059″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.059″ |
| Corner Radius (RE) | 0.0157″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Insert Thickness (S) | 1/8″ | Max. Turning Feed (ft(max)) | 0.0078 ″/rev |
| Inscribed Circle Diameter (IC) | 1/4″ | Clearance Angle Major (AN) | 5 Degrees |
| Cutting Edge Material | Carbide | Cutting Direction (HAND) | Right Hand |
| Coating | TiAlN | Chip Breaker Type | MFT-SS |
| Grade | AH725 | Measurement Type | Inch |
| Fixing Hole Diameter (D1) | 0.106″ | Body Material | Carbide |
| Tool Type | Turn Positive Inserts | Cutting Edge Effective Length (LE) | 0.267″ |
Product Features
| Family Description | Double sided 55deg rhombic inserts with SS chipbreaker for finishing (low cutting force) | Country of Origin | Japan |
Shipping Info
Package Weight
0.006
