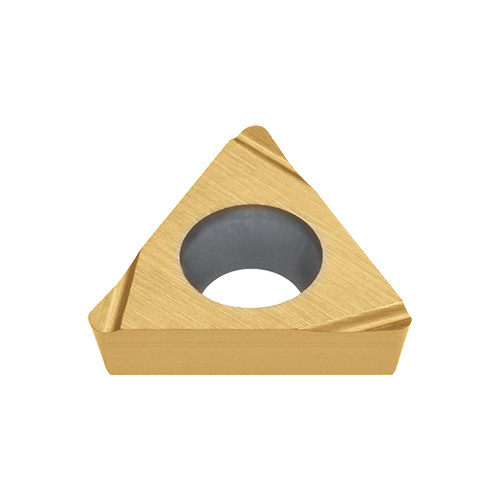

TPGT5.521 FR-W08 SH7025
| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 0.0079″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0394″ |
| Corner Radius (RE) | 0.016″ | Min. Turning Feed (ft(min)) | 0.0004 ″/rev |
| Cutting Edge Length (L) | 0.299″ | Max. Turning Feed (ft(max)) | 0.0059 ″/rev |
| Insert Thickness (S) | 0.063″ | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 0.172″ | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide | Chip Breaker Type | W08 |
| Coating | TiAlN+TiCN | Measurement Type | Inch |
| Grade | SH7025 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.102″ | Cutting Edge Effective Length (LE) | 0.243″ |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Positive 11 deg relief angle, G class, triangular insert, lead type chipbreaker for finishing | Country of Origin | Japan |
| Remarks | "F" included in designation means sharp edge. |
Shipping Info
Package Weight
1.6
