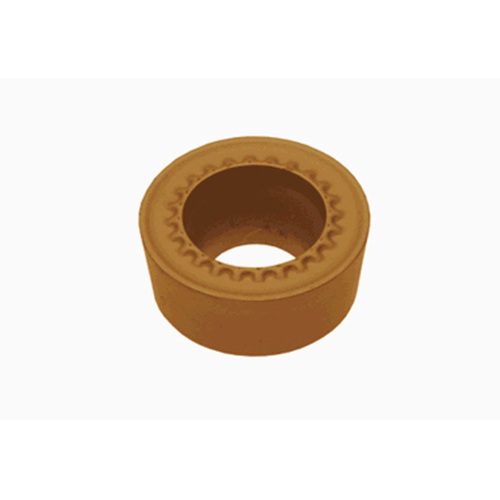

RCMT2507M0-RS AH8005
| Applicable Material | | Stainless Steel | Hard Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.1181″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.1969″ |
| Corner Radius (RE) | 0.4921″ | Min. Turning Feed (ft(min)) | 0.0276 ″/rev |
| Cutting Edge Length (L) | 0.984″ | Max. Turning Feed (ft(max)) | 0.0472 ″/rev |
| Insert Thickness (S) | 0.313″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 0.984″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | Size25-RS |
| Coating | AlTiN | Measurement Type | Inch |
| Grade | AH8005 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.299″ | Cutting Edge Effective Length (LE) | 0.492″ |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Positive 7 deg relief angle, M class, round insert, for finishing to medium cutting | Country of Origin | Japan |
Shipping Info
Package Weight
54.7
