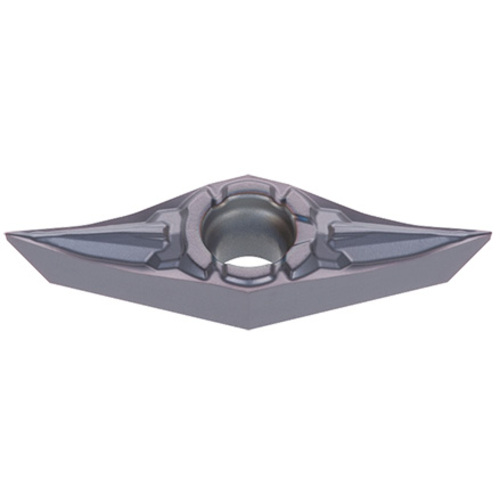

VPGT 220 FN-JP SH725
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Tool Type | Turn Positive Inserts |
| Application | | Inserts | | Min D.O.C. | 0.002″ |
| Corner Radius (RE) | 0.0039″ | Depth of Cut Maximum (APMX) | 0.0787″ |
| Cutting Edge Length (L) | 0.441″ | Min. Turning Feed (ft(min)) | 0.0008 ″/rev |
| Insert Thickness (S) | 1/8″ | Max. Turning Feed (ft(max)) | 0.002 ″/rev |
| Inscribed Circle Diameter (IC) | 1/4″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | JP |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | SH725 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.11″ | Cutting Edge Effective Length (LE) | 0.422″ |
Product Features
| Family Description | Insert for precision finishing, for miniature machining, with sharp edge | Country of Origin | Japan |
Shipping Info
Package Weight
3.5
