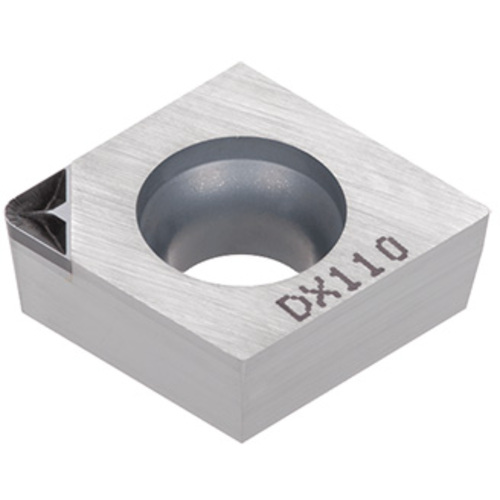

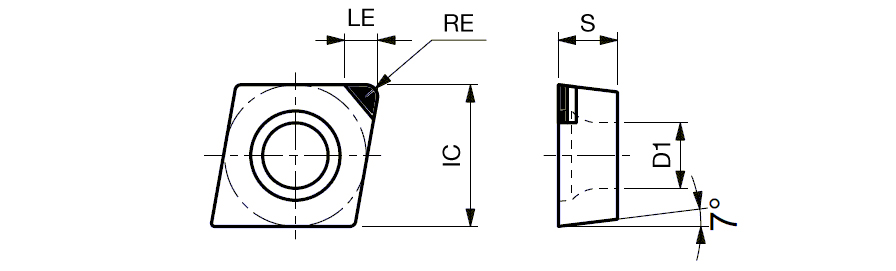

1QP-CCGT 32.50 NS DX110
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Min D.O.C. | 0.0039″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0394″ |
| Corner Radius (RE) | 0.0039″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Cutting Edge Length (L) | 0.382″ | Max. Turning Feed (ft(max)) | 0.002 ″/rev |
| Insert Thickness (S) | 0.156″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCD | Chip Breaker Type | NS-DIA |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | DX110 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.173″ | Cutting Edge Effective Length (LE) | 0.122″ |
| Tool Type | Turn Ultra hard Inserts |
Product Features
| Family Description | Positive 7 deg relief angle, G class, 80 deg rhombic PCD insert with chipbreaker | Country of Origin | Japan |
