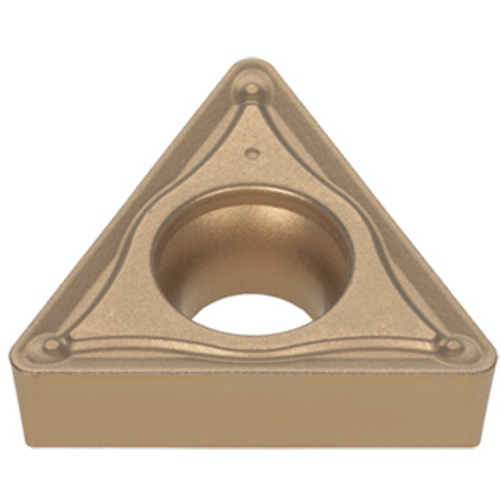

TCMT 222 TSF NS9530
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Tool Type | Turn Positive Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0295″ |
| Corner Radius (RE) | 0.0315″ | Depth of Cut Maximum (APMX) | 0.0984″ |
| Cutting Edge Length (L) | 0.433″ | Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Insert Thickness (S) | 1/8″ | Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Inscribed Circle Diameter (IC) | 1/4″ | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Material | Cermet | Cutting Direction (HAND) | Neutral |
| Coating | Uncoated | Chip Breaker Type | Posi-TSF |
| Grade | NS9530 | Measurement Type | Inch |
| Fixing Hole Diameter (D1) | 0.11″ | Body Material | Carbide |
Product Features
| Family Description | Positive 7deg relief ang., M class, triangular inserts for finishing to medium cutting | Country of Origin | Japan |
