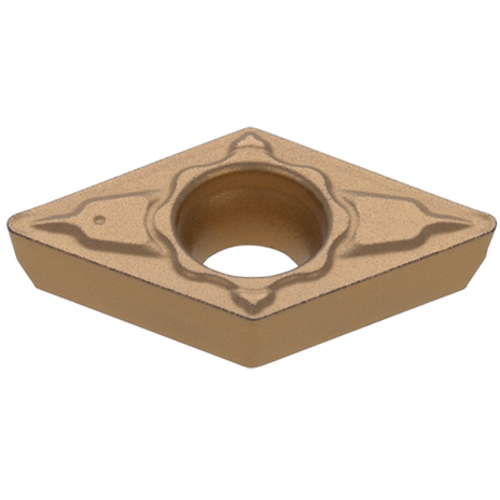

DPMT 21.51 TM T9215
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Tool Type | Turn Positive Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0098″ |
| Corner Radius (RE) | 0.0157″ | Depth of Cut Maximum (APMX) | 0.1181″ |
| Cutting Edge Length (L) | 0.307″ | Min. Turning Feed (ft(min)) | 0.0024 ″/rev |
| Insert Thickness (S) | 0.094″ | Max. Turning Feed (ft(max)) | 0.0067 ″/rev |
| Inscribed Circle Diameter (IC) | 1/4″ | Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Material | Carbide | Cutting Direction (HAND) | Neutral |
| Coating | Ti-compound+Al2O3+TiN | Chip Breaker Type | Posi-TM |
| Grade | T9215 | Measurement Type | Inch |
| Fixing Hole Diameter (D1) | 0.11″ | Body Material | Carbide |
Product Features
| Family Description | Positive 11 deg relief angle, M class, 55 deg rhombic insert, for medium cutting | Country of Origin | Japan |
