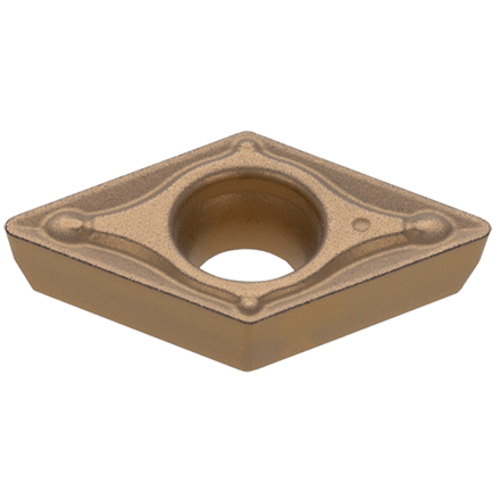

DPMT 21.52 TSF AH6225
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Positive Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0295″ |

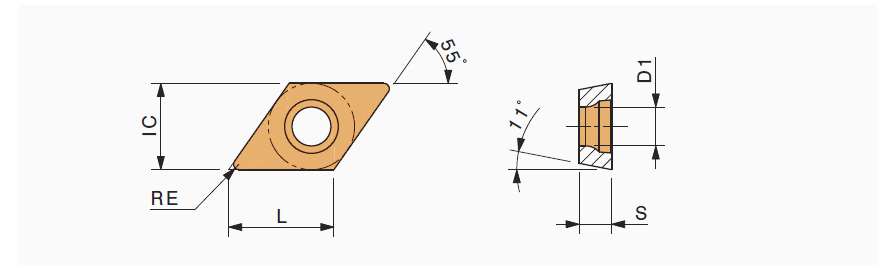

| Corner Radius (RE) | 0.0315″ | Depth of Cut Maximum (APMX) | 0.0984″ |
| Cutting Edge Length (L) | 0.307″ | Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Insert Thickness (S) | 0.094″ | Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Inscribed Circle Diameter (IC) | 1/4″ | Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Material | Carbide | Cutting Direction (HAND) | Neutral |
| Coating | TiAlN | Chip Breaker Type | Posi-TSF |
| Grade | AH6225 | Measurement Type | Inch |
| Fixing Hole Diameter (D1) | 0.11″ | Body Material | Carbide |
Product Features
| Family Description | Positive 11 deg relief angle, M class, 55 deg rhombic insert, for finishing | Country of Origin | Japan |
Shipping Info
Package Weight
0
