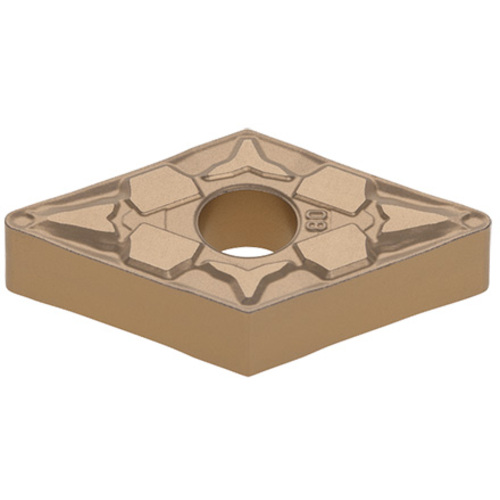

DNMG 432 PM AH8015
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0197″ |
| Corner Radius (RE) | 0.0315″ | Depth of Cut Maximum (APMX) | 0.2165″ |
| Cutting Edge Length (L) | 0.61″ | Min. Turning Feed (ft(min)) | 0.0059 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0157 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | Nega-PM |
| Coating | AlTiN | Measurement Type | Inch |
| Grade | AH8015 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.203″ | Cutting Edge Effective Length (LE) | 0.533″ |
Product Features
| Family Description | Negative relief ang., M class, 55 deg rhombic insert for medium cutting | Country of Origin | Japan |
