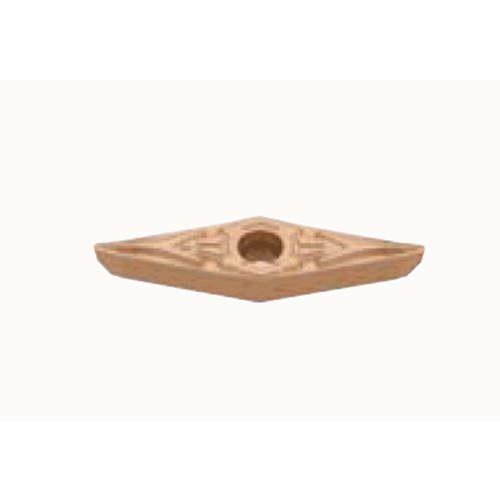

YWMT16T308-ZM NS9530
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Min D.O.C. | 0.0275″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0787″ |
| Corner Radius (RE) | 0.0314″ | Min. Turning Feed (ft(min)) | 0.0079 ″/rev |
| Cutting Edge Length (L) | 0.654″ | Max. Turning Feed (ft(max)) | 0.0157 ″/rev |
| Insert Thickness (S) | 0.156″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 0.276″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Cermet | Chip Breaker Type | YPro Posi-ZM |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | NS9530 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.113″ | Cutting Edge Effective Length (LE) | 0.186″ |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Positive relief ang., M class, 25deg rhombic insert, for finishing to medium profiling | Country of Origin | Japan |
