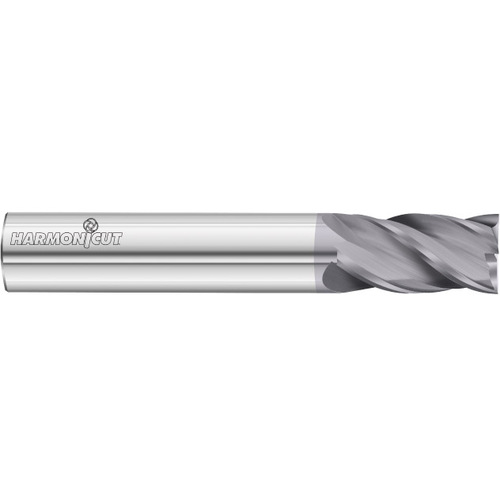

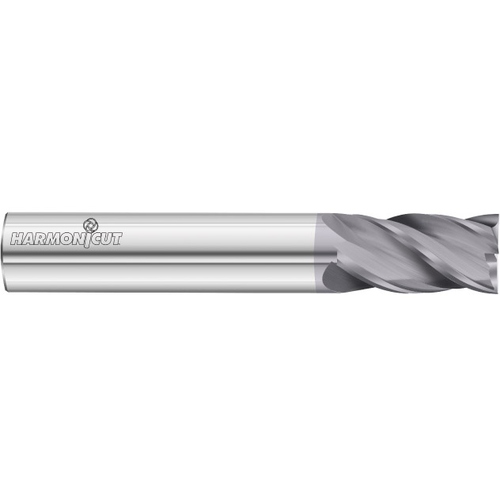

Square End Mill; 10 mm Dia. × 25 mm LOC × 10 mm Shank Dia. × 64 mm OAL ; 4 FL ; Carbide ; FC18 ; Series 3400

‹ ›

Square End Mill; 10 mm Dia. × 25 mm LOC × 10 mm Shank Dia. × 64 mm OAL ; 4 FL ; Carbide ; FC18 ; Series 3400

Square End Mill; 10 mm Dia. × 25 mm LOC × 10 mm Shank Dia. × 64 mm OAL ; 4 FL ; Carbide ; Series 3400

Item # FT8592557

Brand: Fullerton Tool

MFG #: 92557

Legacy Part #: FT8592557

TradeName: 3400 Harmon-i-Cut End Mill

Quantity Available

Cutting Diameter (DC)

10 mm

Shank Type

Round

Connection Diameter Machine Side (DCONMS)

10 mm

End Shape

Square

Depth of Cut Maximum (APMX)

25 mm

Tool Type

Center Cut|Single-End

Overall Length (OAL)

64 mm

Length Group

Regular

Cutting Edge Material

Carbide

Coolant Supply Property (CSP)

External

Coating

FC18

Decimal Equivalent

0.3937″

Flute Count (NOF)

Series/List #

3400

Flute Helix Angle (FHA)

Variable

Product Features

Remarks

‎

Square, Ball and Corner Radius End

4 Flutes

Variable Helix

Variable Index

Variable Rake

Superior Core Strength

Single End

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Standard FC-18 Coating

Metric and Inch Based Tools

Center Cutting

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.000″ -.002″ / +0.000–0.05mm

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

USA

Shipping Info

Package Weight

.340
