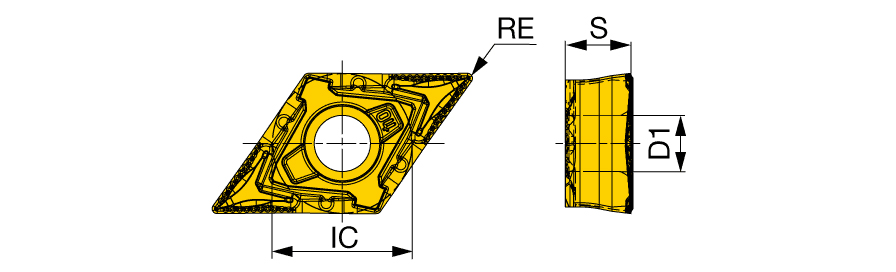

| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Fixing Hole Diameter (D1) | 0.173″ |
| Application | | Inserts | | Tool Type | Turn Positive Inserts |
| Corner Radius (RE) | 0.0157″ | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 0.203″ | Chip Breaker Type | AYT 2D-ZF |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | Ti-compound+Al2O3+TiN | Body Material | Carbide |
| Grade | T9215 | Cutting Edge Effective Length (LE) | 0.49″ |
Product Features

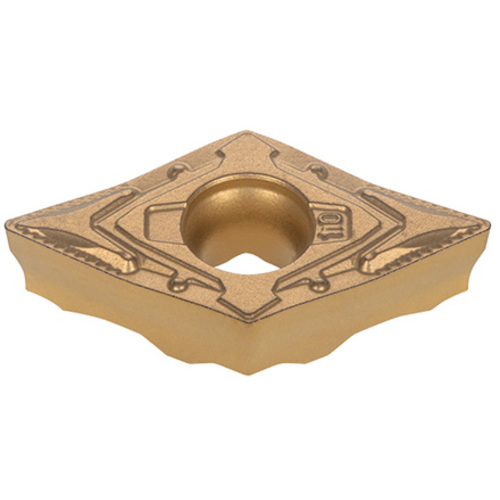

| Family Description | Positive 7 deg relief angle, M class, 55 deg rhombic insert with Y-PRISM's safe lock design. | Country of Origin | Japan |
| Remarks | *Products are made by license; PrimeTurning is a proprietary technology of AB Sandvik Coromant. |
Shipping Info
Package Weight
0
