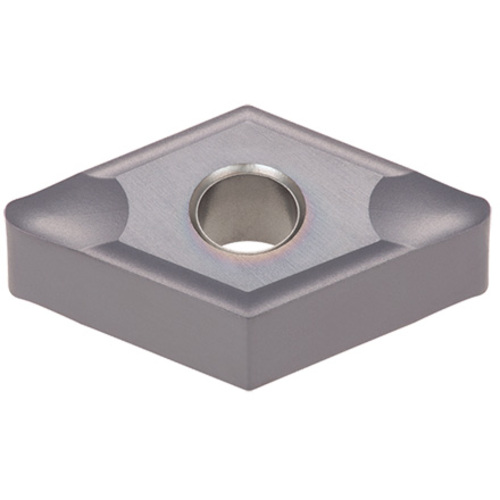

DNMG 332E SS AH6235
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0196″ |
| Corner Radius (RE) | 0.0314″ | Depth of Cut Maximum (APMX) | 0.1181″ |
| Cutting Edge Length (L) | 0.457″ | Min. Turning Feed (ft(min)) | 0.0031 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0078 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | Nega-SS |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | AH6235 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.15″ | Cutting Edge Effective Length (LE) | 0.118″ |
Product Features
| Family Description | Negative relief ang., M class, 55deg rhombic insert, for finishing of stainless steel etc. | Country of Origin | Japan |
