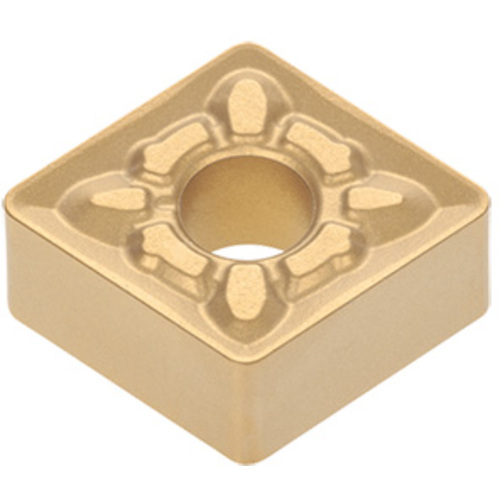

CNMG 332E SM T6215
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0393″ |
| Corner Radius (RE) | 0.0314″ | Depth of Cut Maximum (APMX) | 0.1181″ |
| Cutting Edge Length (L) | 0.382″ | Min. Turning Feed (ft(min)) | 0.0079 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0196 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | SM |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Inch |
| Grade | T6215 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.15″ | Cutting Edge Effective Length (LE) | 0.118″ |
Product Features
| Family Description | Negative relief ang., M class, 80deg rhombic insert, for medium cutting of stainless steel | Country of Origin | Japan |
