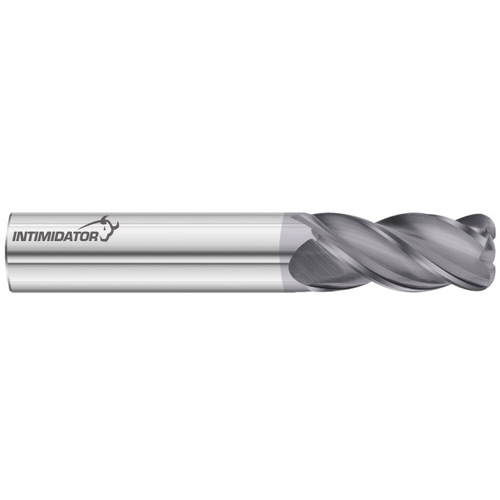

‎Corner Radius End Mill; 5/8″ Dia. × 1-1/4″ LOC × 5/8″ Shank Dia. × 3-1/2″ OAL ; 4 FL ; Carbide ; FC18 ; Series 3000

Item # FT8534425

UNSPSC: 27112803

Brand: Fullerton Tool

MFG#: 34425

Quantity Available

Cutting Diameter (DC)

5/8″

End Shape

Corner Radius

Connection Diameter Machine Side (DCONMS)

5/8″

Corner Radius (RE)

1/8″

Depth of Cut Maximum (APMX)

‎1-1/4″

Tool Type

Center Cut|Single-End

Overall Length (OAL)

‎3-1/2″

Length Group

Regular

Cutting Edge Material

Carbide

Coolant Supply Property (CSP)

External

Flute Count (NOF)

Decimal Equivalent

0.625″

Flute Helix Angle (FHA)

38 Degrees

Series/List #

3000

Shank Type

Weldon

Product Features

Remarks

‎

Square, Chamfer and Radius End Options

Chatter-Free Machining

4 Flutes

Unequally Spaced Index

Specially Designed Relief

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Standard FC-18 Coating

Metric and Inch Based Tools

Center Cutting

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.000″ -.002″ / +0.000–0.05mm

Some Items furnished with Weldon Flats

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

UNITED STATES

Shipping Info

Package Weight

.460
