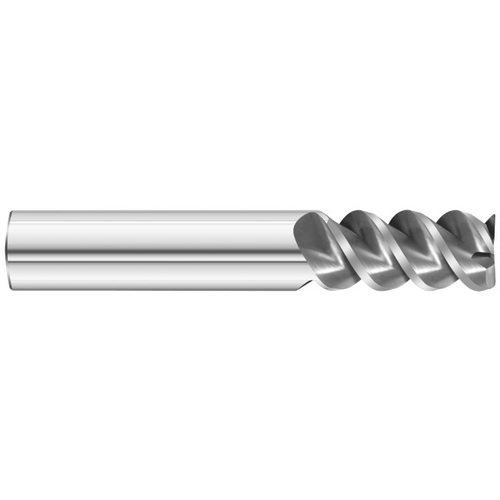

‎Square End Mill; 3/4″ Dia. × 1-1/2″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 3 FL ; Carbide ; Uncoated ; Series 3800

‹ ›

‎Square End Mill; 3/4″ Dia. × 1-1/2″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 3 FL ; Carbide ; Uncoated ; Series 3800

Item # FT8538008

Brand: Fullerton Tool

MFG #: 38008

Legacy Part #: FT8538008

TradeName: 3800 Twister End Mill

Quantity Available

Cutting Diameter (DC)

3/4″

Shank Type

Round

Connection Diameter Machine Side (DCONMS)

3/4″

End Shape

Square

Depth of Cut Maximum (APMX)

‎1-1/2″

Tool Type

Center Cut|Single-End

Overall Length (OAL)

4″

Length Group

Regular

Cutting Edge Material

Carbide

Coolant Supply Property (CSP)

External

Coating

Uncoated

Decimal Equivalent

0.75″

Flute Count (NOF)

Series/List #

3800

Flute Helix Angle (FHA)

60 Degrees

Product Features

Remarks

‎

Square End

3 Flutes

60° Helix

Single End

Eccentric Relief for Increased Edge Strength

Right Hand Spiral

Right Hand Cut

Shank Diameter Tolerance: h6

Standard Uncoated and TiCN or TiAlN Coating

Metric and Inch Based Tools

Center Cutting

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.000″ -.002″ / +0.000–0.05mm

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

USA

Shipping Info

Package Weight

.740
