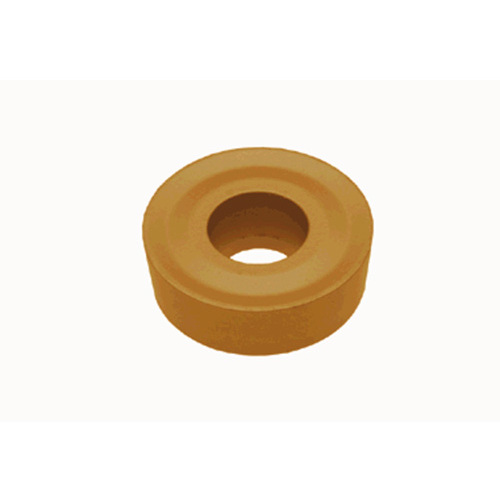

RCMM1003M0-61 AH905
Turning Insert; RCMM1003M0-61 TURN AH905 ; 0.394″ Length ; 0.394″ IC ; Carbide ; Neutral ; AlTiN
| Applicable Material | | Super-Alloys / Titanium | | Min D.O.C. | 0.0196″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0787″ |
| Corner Radius (RE) | 0.1969″ | Min. Turning Feed (ft(min)) | 0.0196 ″/rev |
| Cutting Edge Length (L) | 0.394″ | Max. Turning Feed (ft(max)) | 0.0393 ″/rev |
| Insert Thickness (S) | 1/8″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 0.394″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | Posi Size10-61 |
| Coating | AlTiN | Measurement Type | Inch |
| Grade | AH905 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.142″ | Cutting Edge Effective Length (LE) | 0.197″ |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Positive 7deg relief ang., M class, round insert, for heavy cutting | Country of Origin | Japan |
Shipping Info
Package Weight
0.009
