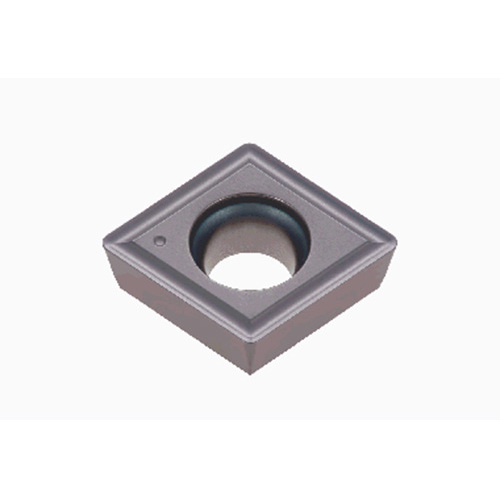

CPMT 432 AH905
Turning Insert; CPMT432 AH905 ; 0.508″ Length ; 1/2″ IC ; 0.031″ Corner Radius ; Carbide ; Neutral ; AlTiN
| Applicable Material | | Super-Alloys / Titanium | | Tool Type | Turn Positive Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0039″ |
| Corner Radius (RE) | 0.0314″ | Depth of Cut Maximum (APMX) | 0.0787″ |
| Cutting Edge Length (L) | 0.508″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ | Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Material | Carbide | Cutting Direction (HAND) | Neutral |
| Coating | AlTiN | Chip Breaker Type | PB |
| Grade | AH905 | Measurement Type | Inch |
| Fixing Hole Diameter (D1) | 0.217″ | Body Material | Carbide |
Product Features
| Family Description | Positive 11deg relief ang., M class, 80deg rhombic insert, for supper alloy cutting | Country of Origin | Japan |
Shipping Info
Package Weight
0.02
