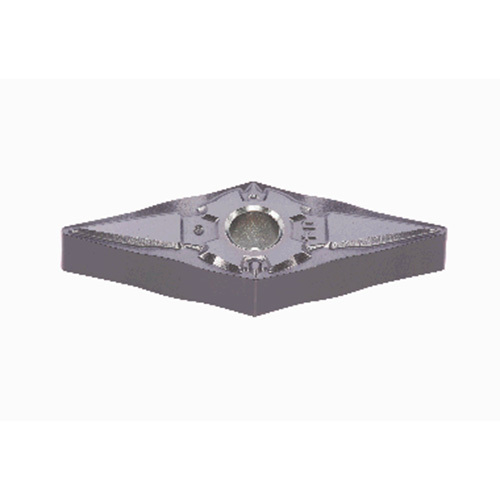

VNMG 332 SF T6215
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0314″ |
| Corner Radius (RE) | 0.0314″ | Depth of Cut Maximum (APMX) | 0.0984″ |
| Cutting Edge Length (L) | 0.654″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0177 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | SF |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Inch |
| Grade | T6215 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.15″ | Cutting Edge Effective Length (LE) | 0.544″ |
Product Features
| Family Description | Negative relief ang., M class, 35deg rhombic insert, for finishing of stainless steel | Country of Origin | Japan |
