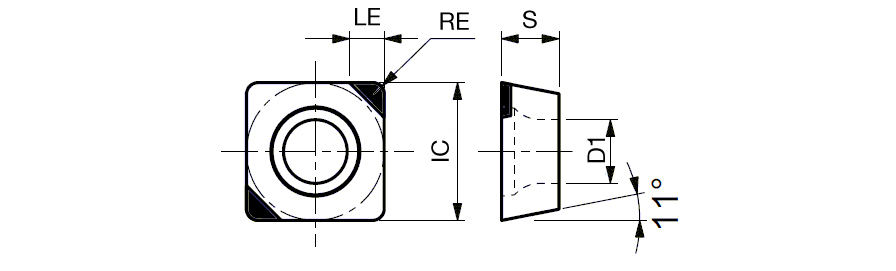

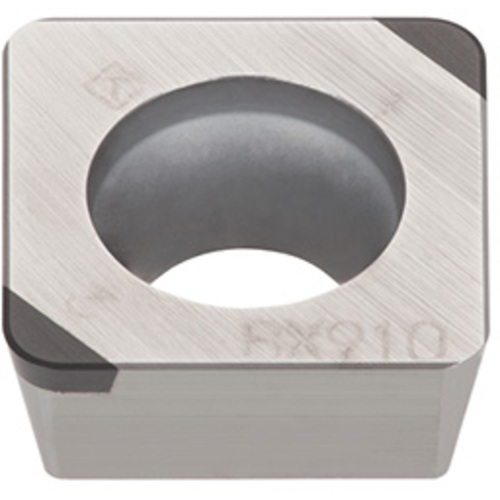

2QP-SPGW 434 BX910
| Applicable Material | | Cast Iron | | Tool Type | Turn Ultra hard Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0019″ |
| Corner Radius (RE) | 0.063″ | Depth of Cut Maximum (APMX) | 0.0197″ |
| Cutting Edge Length (L) | 1/2″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0078 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCBN | Chip Breaker Type | FT-CBN |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | BX910 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.217″ | Cutting Edge Effective Length (LE) | 0.094″ |
Product Features
| Family Description | Positive 11deg relief ang., G class, square CBN insert | Country of Origin | Japan |
