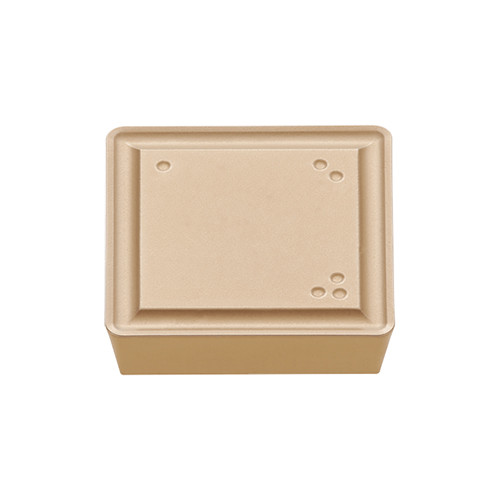

SPMR 322 CM T5115
Turning Insert; SPMR322CM T5115 ; 3/8″ Length ; 3/8″ IC ; 0.031″ Corner Radius ; Carbide ; Neutral ; TiCN+Al2O3+TiN
| Applicable Material | | Cast Iron | | Min D.O.C. | 0.0019″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0787″ |
| Corner Radius (RE) | 0.0314″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 3/8″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Thickness (S) | 1/8″ | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | Posi-CM |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Inch |
| Grade | T5115 | Body Material | Carbide |
| Tool Type | Turn Positive Inserts | Cutting Edge Effective Length (LE) | 0.344″ |
Product Features
| Family Description | Positive 11deg relief ang., M class, square insert, for multi-purpose cutting of grey and ductile cast iron | Country of Origin | Japan |
Shipping Info
Package Weight
0.011
