3833SD 1/4X3 3FL EM-FC5

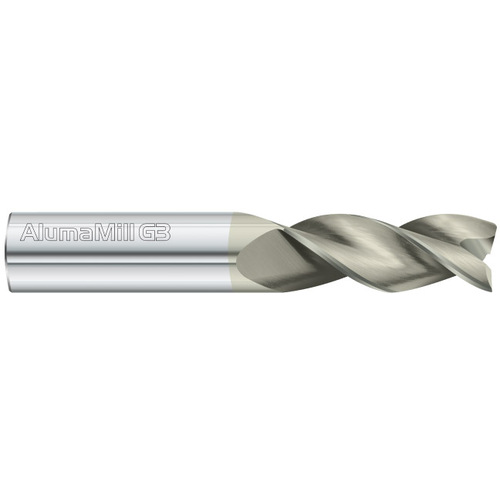

‎SQ End Mill; 1/4″ Dia. × 1-1/4″ LOC × 1/4″ Shank Dia. × 3″ OAL ; 3 FL ; 1-1/4″ LBS ; Carbide ; ZrN ; Series 3833

Item # FT8527069

Brand: Fullerton Tool

MFG #: 27069

Legacy Part #: FT8527069

TradeName: 3833 AlumaMill G3 End Mill

Quantity Available

Cutting Diameter (DC)

1/4″

Shank Type

Round

Connection Diameter Machine Side (DCONMS)

1/4″

End Shape

Square

Depth of Cut Maximum (APMX)

‎1-1/4″

Usable Length (LU)

‎1-1/4″

Overall Length (OAL)

3″

Tool Type

Center Cut|Single-End

Cutting Edge Material

Carbide

Length Group

Regular

Coating

ZrN

Coolant Supply Property (CSP)

External

Flute Count (NOF)

Decimal Equivalent

0.25″

Flute Helix Angle (FHA)

37.5 Degrees

Series/List #

3833

Product Features

Remarks

‎

Square, Ball and Radius End

3 Flutes

37.5° High Helix

Single End

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Standard Uncoated and FC-19 Coating

Inch Based Tools

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.0000″ -. 0005″ / +0.000–0.013mm

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

USA

Shipping Info

Package Weight

0.06
