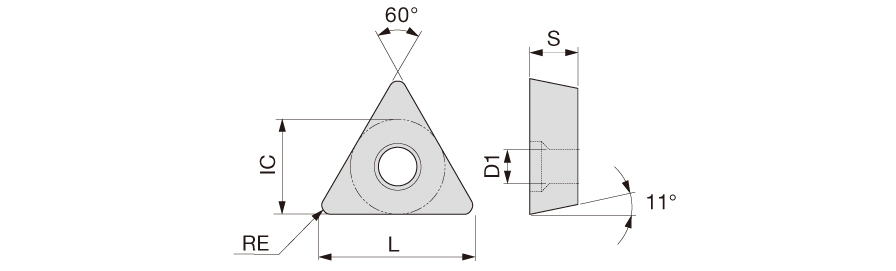

TPMT21.51 T5115 INSERT
Turning Insert; TPMT21.51 T5115 ; 0.433″ Length ; 1/4″ IC ; 0.016″ Corner Radius ; Carbide ; Neutral ; TiCN+Al2O3+TiN

| Applicable Material | | Cast Iron | | Min D.O.C. | 0.1 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 2 mm |
| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 11 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Insert Thickness (S) | 2.38 mm | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 6.35 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | FT |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Metric |
| Grade | T5115 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 2.8 mm | Cutting Edge Effective Length (LE) | 9.61 mm |
| Tool Type | Turn Positive Inserts |

Product Features
| Family Description | Positive 11deg relief ang., M class, triangular insert, without chipbreaker for finishing to medium cutting | Country of Origin | Japan |
Shipping Info
Package Weight
0.006
