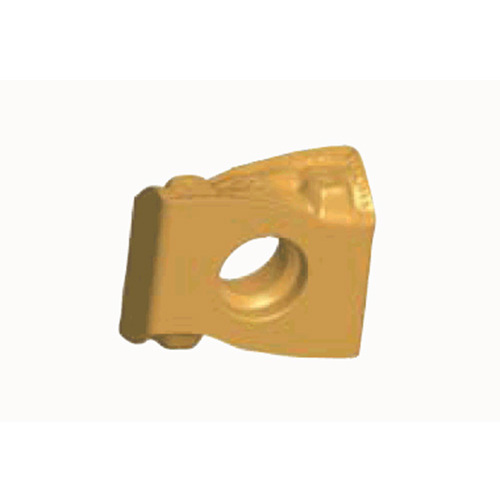

LNMX160612L-TDR T9125
Turning Insert; LNMX160612L-TDR T9125 ; 0.638″ Length ; 0.047″ Corner Radius ; Carbide ; Left Hand ; TiCN+Al2O3+TiN
| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 0.0314″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.2362″ |
| Corner Radius (RE) | 0.0472″ | Min. Turning Feed (ft(min)) | 0.0098 ″/rev |
| Cutting Edge Length (L) | 0.638″ | Max. Turning Feed (ft(max)) | 0.0314 ″/rev |
| Insert Thickness (S) | 0.531″ | Cutting Direction (HAND) | Left Hand |
| Cutting Edge Material | Carbide | Chip Breaker Type | 16TDR-R12 |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Inch |
| Grade | T9125 | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Cutting Edge Effective Length (LE) | 0.583″ |
Product Features
| Family Description | Insert for steel cutting | Country of Origin | Israel |
Shipping Info
Package Weight
0.033
